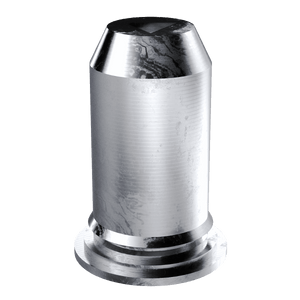

Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 3 x 10, 100 Pack
Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 3 x 10, 100 Pack
Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 3 x 10, 100 Pack
Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 3 x 10, 100 Pack

Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 3 x 10, 100 Pack

$99,999.00 USD

Specifications :

  • MFG Part Number : CGS3MM-10
  • Product Group: CGS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: Unthreaded
  • Hole Diameter: 3.5 +0.08 -0.00
  • Sheet Thickness: 1
  • CRS Sheet Hardness: 65 HRB

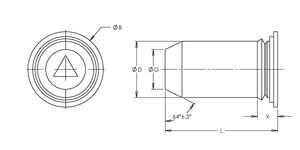

  • Dim B: 5.20 ±0.40
  • Dim D: 3.00 ±0.05
  • Dim G: 2.11 ±0.15
  • Dim L: 10.0 ±0.4
  • X Max.: 2.29
  • CL to Edge Distance: 6.4
  • CRS Installation Force: 22 kN
  • CRS Push Out: 0.98 kN
  • 5052 H34 Aluminum Sheet Hardness: 22 HRB
  • 5052 H34 Aluminum Installation Force: 12 kN
  • 5052 H34 Aluminum Push Out: 0.56 kN
