Specifications :

• MFG Part Number : CGS187-16
• Product Group: CGS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: Unthreaded
• Hole Diameter: 0.205 +0.003 -0.000
• Sheet Thickness: 0.04
• CRS Sheet Hardness: 60 HRB

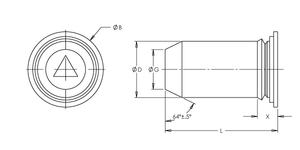

• Dim B: 0.270 ±0.015
• Dim D: 0.187 ±0.002
• Dim G: 0.132 ±0.006
• Dim L: 1.000 ±0.015
• X Max.: 0.09
• CL to Edge Distance: 0.28
• CRS Installation Force: 8000 lbs
• CRS Push Out: 400 lbs
• 5052 H34 Aluminum Sheet Hardness: 18 HRB
• 5052 H34 Aluminum Installation Force: 6500 lbs
• 5052 H34 Aluminum Push Out: 230 lbs
