Specifications :

• MFG Part Number : TCHSM3-8
• Product Group: TCHS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 3 +0.08 -0.00
• Sheet Thickness: 0.51
• .600mm CRS Sheet Hardness: 52 HRB

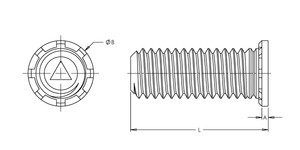

• Dim A Max.: 0.64
• Dim B: 4.5 ±0.4
• Dim L: 8.0 ±0.4
• CL to Edge Distance: 5.6
• .600mm CRS Installation Force: 6.7 kN
• .600mm CRS Push Out: 300 N
• .600mm CRS Torque Out: 1.0 N-m
