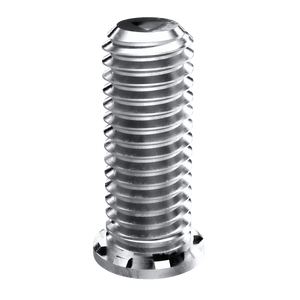

Self-Clinching Stud, Non-Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.625, 100 Pack
Self-Clinching Stud, Non-Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.625, 100 Pack
Self-Clinching Stud, Non-Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.625, 100 Pack
Self-Clinching Stud, Non-Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.625, 100 Pack

Self-Clinching Stud, Non-Flush Head, 300 Series Stainless Steel, Passivated, 6-32 x 0.625, 100 Pack

Specifications :

  • MFG Part Number : TCHS632-10
  • Product Group: TCHS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Imperial
  • Thread Size: 6-32 UNC
  • Thread Code: 632
  • Hole Diameter: 0.137 +0.003 -0.000
  • Sheet Thickness: 0.02
  • .025in Steel Sheet Hardness: 52 HRB

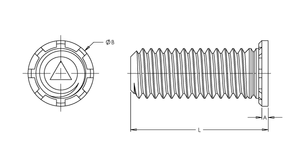

  • Dim A Max.: 0.025
  • Dim B: 0.203 ±0.015
  • Dim L: 0.625 ±0.015
  • CL to Edge Distance: 0.25
  • .025in Steel Installation Force: 2500 lbs
  • .025in Steel Push Out: 110 lbs
  • .025in Steel Torque Out: 16 in-lbs
  • .020in Aluminum Sheet Hardness: 28 HRB
  • .020in Aluminum Installation Force: 1500 lbs
  • .020in Aluminum Push Out: 50 lbs
  • .020in Aluminum Torque Out: 8 in-lbs
