Specifications :

• MFG Part Number : TCHM3-12
• Product Group: TCH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 3 +0.08 -0.00
• Sheet Thickness: 0.51
• .600mm CRS Sheet Hardness: 52 HRB

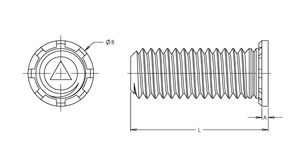

• Dim A Max.: 0.64
• Dim B: 4.5 ±0.4
• Dim L: 12.0 ±0.4
• CL to Edge Distance: 5.6
• .600mm CRS Installation Force: 12.5 kN
• .600mm CRS Push Out: 300 N
• .600mm CRS Torque Out: 1.0 N-m
• .500mm Aluminum Sheet Hardness: 28 HRB
• .500mm Aluminum Installation Force: 5.8 kN
• .500mm Aluminum Push Out: 195 N
• .500mm Aluminum Torque Out: 0.6 N-m
