Specifications :

• MFG Part Number : TCH832-10
• Product Group: TCH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.163 +0.003 -0.000
• Sheet Thickness: 0.02
• .023in Steel Sheet Hardness: 52 HRB

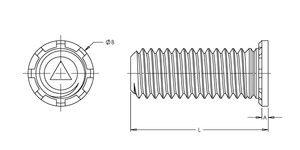

• Dim A Max.: 0.025
• Dim B: 0.234 ±0.015
• Dim L: 0.625 ±0.015
• CL to Edge Distance: 0.281
• .023in Steel Installation Force: 3100 lbs
• .023in Steel Push Out: 120 lbs
• .023in Steel Torque Out: 26 in-lbs
• .020in Aluminum Sheet Hardness: 28 HRB
• .020in Aluminum Installation Force: 2100 lbs
• .020in Aluminum Push Out: 60 lbs
• .020in Aluminum Torque Out: 10 in-lbs
