Specifications :

• MFG Part Number : CFSSS156-24
• Product Group: CFSSS
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: Unthreaded
• Hole Diameter: 0.123 +0.003 -0.000
• Sheet Thickness: 0.04
• PCB Hardness HRB: 60 HRB

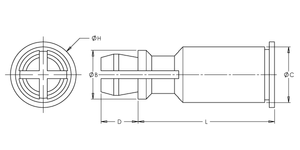

• Dim B: 0.188 ±0.005
• Dim C Max.: 0.212
• Dim D: 0.141 ±0.005
• Dim H: 0.250 ±0.005
• Dim L: 0.750 ±0.005
• CL to Edge Distance: 0.26
• .040in AL HRB25 Installation Force: 1500 lbs
• .040in AL HRB25 Push Out: 200 lbs
