Specifications :

• MFG Part Number : C1024-3
• Product Group: C
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 10-24 UNC
• Thread Code: 1024
• Hole Diameter: 0.250 +0.003 -0.00
• Sheet Thickness: 0.09

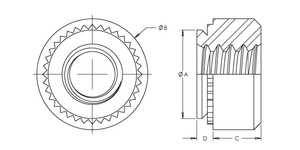

• Dim A Max.: 0.249
• Dim B: 0.340 ±0.010
• Dim C: 0.090 ±0.010
• Dim D Max.: 0.087
• CL to Edge Distance: 0.28
• CRS Installation Force: 4000-9000 lbs
• CRS Push Out: 320 lbs
• CRS Torque Out: 60 in-lbs
