Specifications :

• MFG Part Number : CFSP832-2
• Product Group: CFSP
• Material: Stainless Steel; Precipitation Hardened
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.213 +0.003 -0.00
• Sheet Thickness: 0.056

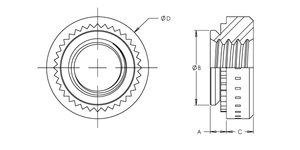

• Dim A Max.: 0.054
• Dim B Max.: 0.212
• Dim C: 0.090 ±0.010
• Dim D: 0.310 ±0.010
• CL to Edge Distance: 0.27
• 304SS Installation Force: 11000 lbs
• 304SS Push Out: 360 lbs
• 304SS Torque Out: 45 in-lbs
