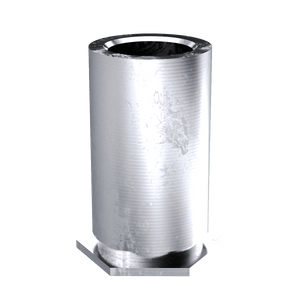

Self-Clinching Standoff, Through Unthreaded, 300 Series Stainless Steel, Passivated, 5.1 x 20, 100 Pack

Specifications :

  • MFG Part Number : CFSOS85.1-20
  • Product Group: CFSOS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: Unthreaded
  • Hole Diameter: 7.14 +0.08 -0.00
  • Sheet Thickness: 1.27

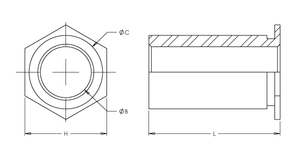

  • Dim B: 5.10 +0.10 -0.08
  • Dim C: 7.12 +0.00 -0.13
  • Dim H Nom.: 7.9
  • Dim L: 20.00 +0.05 -0.13
  • CL to Edge Distance: 8.0
