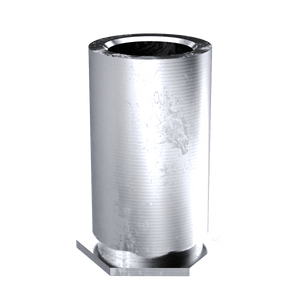

Self-Clinching Standoff, Through Unthreaded, 300 Series Stainless Steel, Passivated, 3.6 x 3, Hole Dia.: 5.4, 100 Pack

Specifications :

  • MFG Part Number : CFSOS63.6-3
  • Product Group: CFSOS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: Unthreaded
  • Hole Diameter: 5.41 +0.08 -0.00
  • Sheet Thickness: 1

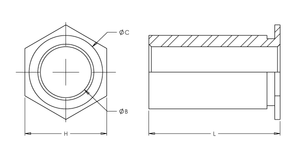

  • Dim B: 3.60 +0.10 -0.08
  • Dim C: 5.39 +0.00 -0.13
  • Dim H Nom.: 6.4
  • Dim L: 3.00 +0.05 -0.13
  • CL to Edge Distance: 6.8
