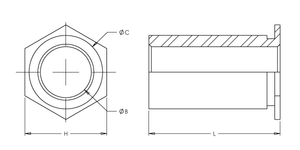

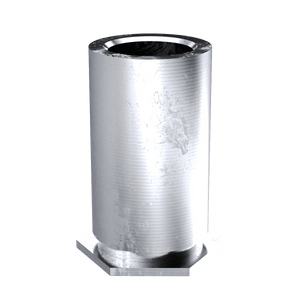

Self-Clinching Standoff, Through Unthreaded, 300 Series Stainless Steel, Passivated, 0.116 x 0.562, 100 Pack

Specifications :

  • MFG Part Number : CFSOS4116-18
  • Product Group: CFSOS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Imperial
  • Thread Size: Unthreaded
  • Hole Diameter: 0.166 +0.003 -0.000
  • Sheet Thickness: 0.04
  • Dim B: 0.116 +0.004 -0.003
  • Dim C: 0.165 +0.000 -0.005
  • Dim H Nom.: 0.187
  • Dim L: 0.562 +0.002 -0.005
  • CL to Edge Distance: 0.23
