Specifications :

• MFG Part Number : CFSOS3.5M3-6
• Product Group: CFSOS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Sheet Thickness: 1

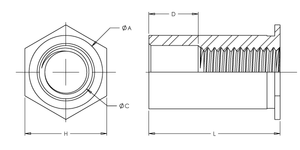

• Dim A: 5.39 +0.00 -0.13
• Dim C: 3.20 ±0.13
• Dim H Nom.: 6.4
• Dim L: 6.00 +0.05 -0.13
• CL to Edge Distance: 6.8
• Max Nut Tightening Torque: 0.44 N-m
• 1.500mm CRS Installation Force: 14.7 kN
• 1.500mm CRS Push Out: 1860 N
• 1.500mm CRS Torque Out: 3.95 N-m
• 1.500mm CRS Pull Through: 1352 N
• 1.500mm 5052 H34 Aluminum Intallation Force: 7.6 kN
• 1.500mm 5052 H34 Aluminum Push Out: 1330 N
• 1.500mm 5052 H34 Aluminum Torque Out: 2.82 N-m
• 1.500mm 5052 H34 Aluminum Pull Through: 1100 N
