Specifications :

• MFG Part Number : CFSOM4-6
• Product Group: CFSO
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Sheet Thickness: 1.27

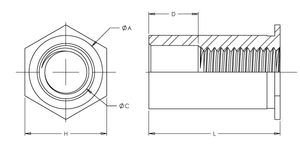

• Dim A: 7.12 +0.00 -0.13
• Dim C: 4.80 ±0.13
• Dim H Nom.: 7.9
• Dim L: 6.00 +0.05 -0.13
• CL to Edge Distance: 8.0
• Max Nut Tightening Torque: 2.00 N-m
• 1.500mm CRS Installation Force: 17.8 kN
• 1.500mm CRS Push Out: 2490 N
• 1.500mm CRS Torque Out: 8.47 N-m
• 1.500mm CRS Pull Through: 3110 N
• 1.500mm 5052 H34 Aluminum Intallation Force: 10.7 kN
• 1.500mm 5052 H34 Aluminum Push Out: 1780 N
• 1.500mm 5052 H34 Aluminum Torque Out: 5.08 N-m
• 1.500mm 5052 H34 Aluminum Pull Through: 2575 N
