Specifications :

• MFG Part Number : CFSOA6440-24
• Product Group: CFSOA
• Material: Aluminum; 7075-T6
• Finish: None
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Sheet Thickness: 0.04

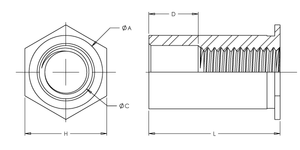

• Dim A: 0.212 +0.000 -0.005
• Dim C: 0.125 ±0.005
• Dim D: 0.312 ±0.010
• Dim H Nom.: 0.25
• Dim L: 0.750 +0.002 -0.005
• CL to Edge Distance: 0.27
• Max Nut Tightening Torque: 2.85 in- lbs
• .060in CRS Installation Force: NR
• .060in CRS Push Out: nr
• .060in CRS Torque Out: nr
• .060in CRS Pull Through: NR
• .060in 5052 H34 Aluminum Installation Force: 1700 lbs
• .060in 5052 H34 Aluminum Push Out: 300 lbs
• .060in 5052 H34 Aluminum Torque Out: 25 in- lbs
• .060in 5052 H34 Aluminum Pull Through: 186 lbs
