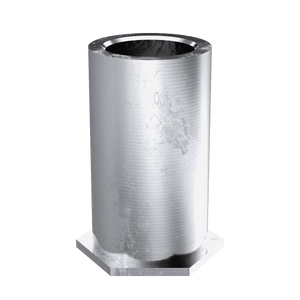

Self-Clinching Standoff, Through Threaded, 7075-T6 Aluminum, 4-40 x 0.500, Hole Dia.: 0.166, 100 Pack

Self-Clinching Standoff, Through Threaded, 7075-T6 Aluminum, 4-40 x 0.500, Hole Dia.: 0.166, 100 Pack

Self-Clinching Standoff, Through Threaded, 7075-T6 Aluminum, 4-40 x 0.500, Hole Dia.: 0.166, 100 Pack

Self-Clinching Standoff, Through Threaded, 7075-T6 Aluminum, 4-40 x 0.500, Hole Dia.: 0.166, 100 Pack

Self-Clinching Standoff, Through Threaded, 7075-T6 Aluminum, 4-40 x 0.500, Hole Dia.: 0.166, 100 Pack

$99,999.00 USD

Specifications :

MFG Part Number : CFSOA440-16
Product Group: CFSOA
Material: Aluminum; 7075-T6
Finish: None
Thread Type: Imperial
Thread Size: 4-40 UNC
Thread Code: 440
Sheet Thickness: 0.04

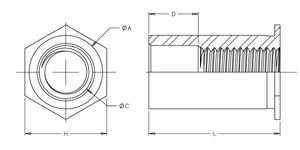

Dim A: 0.165 +0.000 -0.005
Dim C: 0.125 ±0.005
Dim D: 0.187 ±0.010
Dim H Nom.: 0.187
Dim L: 0.500 +0.002 -0.005
CL to Edge Distance: 0.23
Max Nut Tightening Torque: 2.85 in- lbs
.060in CRS Installation Force: NR
.060in CRS Push Out: nr
.060in CRS Torque Out: nr
.060in CRS Pull Through: NR
.060in 5052 H34 Aluminum Installation Force: 1100 lbs
.060in 5052 H34 Aluminum Push Out: 160 lbs
.060in 5052 H34 Aluminum Torque Out: 11 in- lbs
.060in 5052 H34 Aluminum Pull Through: 168 lbs
