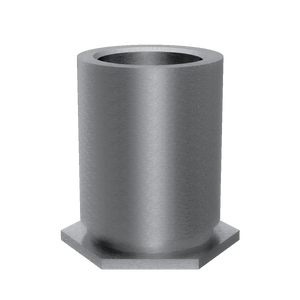

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, M5x0.8 x 8, 100 Pack
Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, M5x0.8 x 8, 100 Pack
Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, M5x0.8 x 8, 100 Pack
Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, M5x0.8 x 8, 100 Pack

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, M5x0.8 x 8, 100 Pack

Specifications :

  • MFG Part Number : CF4-SOM5-8
  • Product Group: CF4-SO
  • Material: Stainless Steel; 400 Series
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: M5x0.8
  • Thread Code: M5
  • Hole Diameter: 7.14 +0.08 -0.00
  • Sheet Thickness: 1.27

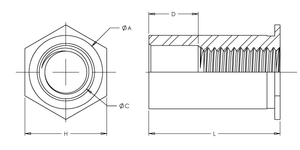

  • Dim A: 7.12 +0.00 -0.13
  • Dim H Nom.: 7.9
  • Dim L: 8.00 +0.05 -0.13
  • CL to Edge Distance: 8.0
  • 1.300mm 300 Series Stainless Steel Recommended Tig: 3.60 N-m
  • 1.300mm 300 Series Stainless Steel Installation Fo: 46.7 kN
  • 1.300mm 300 Series Stainless Steel Push Out: 4003 N
  • 1.300mm 300 Series Stainless Steel Torque Out: 8.89 N-m
  • 1.300mm 300 Series Stainless Steel Pull Through: 6226 N
