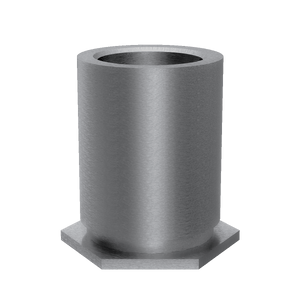

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, M3x0.5 x 3, Hole Dia.: 4.8, 100 Pack

Specifications :

  • MFG Part Number : CF4-SOM3-3
  • Product Group: CF4-SO
  • Material: Stainless Steel; 400 Series
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: M3x0.5
  • Thread Code: M3
  • Hole Diameter: 4.22 +0.08 -0.00
  • Sheet Thickness: 1

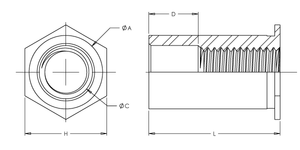

  • Dim A: 4.20 +0.00 -0.13
  • Dim H Nom.: 4.8
  • Dim L: 3.00 +0.05 -0.13
  • CL to Edge Distance: 6.0
  • 1.300mm 300 Series Stainless Steel Recommended Tig: 0.55 N-m
  • 1.300mm 300 Series Stainless Steel Installation Fo: 24.5 kN
  • 1.300mm 300 Series Stainless Steel Push Out: 1493 N
  • 1.300mm 300 Series Stainless Steel Torque Out: 2.36 N-m
  • 1.300mm 300 Series Stainless Steel Pull Through: 2650 N
