Specifications :

• MFG Part Number : CF4-SO832-10
• Product Group: CF4-SO
• Material: Stainless Steel; 400 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.281 +0.003 -0.000
• Sheet Thickness: 0.05

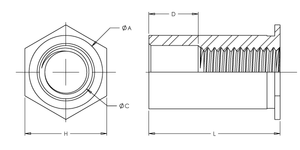

• Dim A: 0.280 +0.000 -0.005
• Dim H Nom.: 0.312
• Dim L: 0.312 +0.002 -0.005
• CL to Edge Distance: 0.31
• .050in SS Recommended Tightening Torque: 18 in-lbs
• .050in SS Installation Force: 10500 lbs
• .050in SS Push Out: 900 lbs
• .050in SS Torque Out: 71 in-lbs
• .050in SS Pull Through: 1517 lbs
