Specifications :

• MFG Part Number : CF4-SO6440-6
• Product Group: CF4-SO
• Material: Stainless Steel; 400 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.04

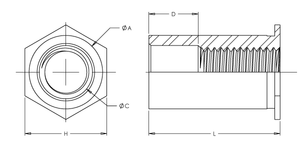

• Dim A: 0.212 +0.000 -0.005
• Dim H Nom.: 0.25
• Dim L: 0.187 +0.002 -0.005
• CL to Edge Distance: 0.27
• .050in SS Recommended Tightening Torque: 4.75 in-lbs
• .050in SS Installation Force: 9500 lbs
• .050in SS Push Out: 647 lbs
• .050in SS Torque Out: 30 in-lbs
• .050in SS Pull Through: 680 lbs
