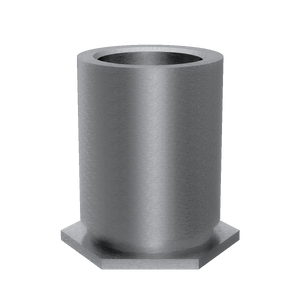

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, 4-40 x 0.500, Hole Dia.: 0.187, 100 Pack

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, 4-40 x 0.500, Hole Dia.: 0.187, 100 Pack

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, 4-40 x 0.500, Hole Dia.: 0.187, 100 Pack

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, 4-40 x 0.500, Hole Dia.: 0.187, 100 Pack

Self-Clinching Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, 4-40 x 0.500, Hole Dia.: 0.187, 100 Pack

Specifications :

MFG Part Number : CF4-SO440-16
Product Group: CF4-SO
Material: Stainless Steel; 400 Series
Finish: Passivated
Thread Type: Imperial
Thread Size: 4-40 UNC
Thread Code: 440
Hole Diameter: 0.166 +0.003 -0.000
Sheet Thickness: 0.04

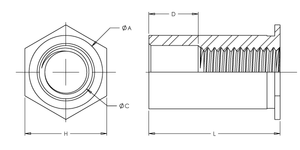

Dim A: 0.165 +0.000 -0.005
Dim C: 0.125 ±0.005
Dim D: 0.187 ±0.010
Dim H Nom.: 0.187
Dim L: 0.500 +0.002 -0.005
CL to Edge Distance: 0.23
.050in SS Recommended Tightening Torque: 4.75 in-lbs
.050in SS Installation Force: 5500 lbs
.050in SS Push Out: 336 lbs
.050in SS Torque Out: 17 in-lbs
.050in SS Pull Through: 600 lbs
