Specifications :

• MFG Part Number : CM6-0
• Product Group: C
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M6x1.0
• Thread Code: M6
• Hole Diameter: 8.75 +0.08 -0.00
• Sheet Thickness: 1.2

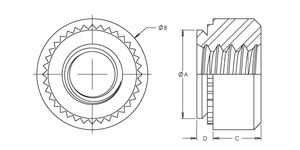

• Dim A Max.: 8.73
• Dim B: 11.18 ±0.25
• Dim C: 4.08 ±0.25
• Dim D Max.: 1.15
• CL to Edge Distance: 8.6
• CRS Installation Force: 27-36 kN
• CRS Push Out: 1380 N
• CRS Torque Out: 13.00 N-m
• 5052 H34 Aluminum Installation Force: 11.2-13.4 kN
• 5052 H34 Aluminum Push Out: 970 N
• 5052 H34 Aluminum Torque Out: 4.00 N-m
