Specifications :

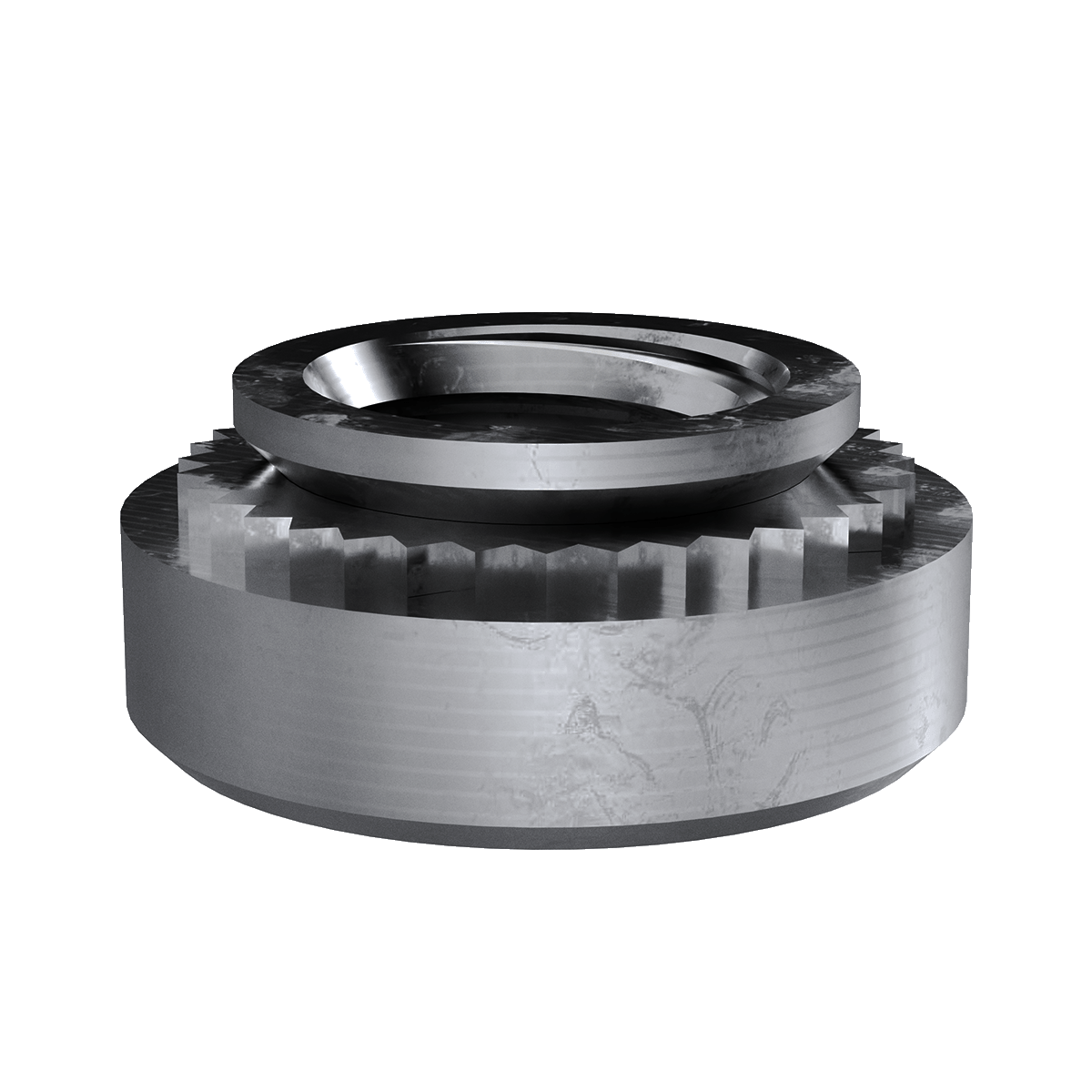

• MFG Part Number : CM10-3
• Product Group: C
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M10x1.5
• Thread Code: M10
• Hole Diameter: 14.00 +0.08 -0.00
• Sheet Thickness: 6.4
• Dim A Max.: 13.97
• Dim B: 17.35 ±0.25
• Dim C: 7.48 ±0.25
• Dim D Max.: 6
• CL to Edge Distance: 13.5
• CRS Installation Force: 32-50 kN
• CRS Push Out: 2020 N
• CRS Torque Out: 36.2 N-m
• 5052 H34 Aluminum Installation Force: 11.7 kN
• 5052 H34 Aluminum Push Out: 580 N
• 5052 H34 Aluminum Torque Out: 5.88 N-m
