Specifications :

• MFG Part Number : C813-1
• Product Group: C
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 1/2-13 UNC
• Thread Code: 813
• Hole Diameter: 0.656 +0.003 -0.00
• Sheet Thickness: 0.125

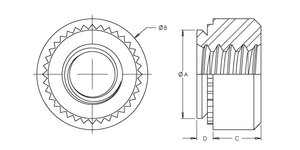

• Dim A Max.: 0.655
• Dim B: 0.810 ±0.010
• Dim C: 0.360 ±0.010
• Dim D Max.: 0.12
• CL to Edge Distance: 0.63
• CRS Installation Force: 10000-15000 lbs
• CRS Push Out: 1050 lbs
• CRS Torque Out: 735 in-lbs
• 5052 H34 Aluminum Installation Force: 7000-9000 lbs
• 5052 H34 Aluminum Push Out: 475 lbs
• 5052 H34 Aluminum Torque Out: 350 in-lbs
