Specifications :

• MFG Part Number : CPLC1032
• Product Group: CPLC
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.312 +0.003 -0.00
• Sheet Thickness: 0.040-0.070

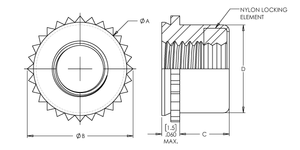

• Dim A Max.: 0.311
• Dim B Max.: 0.353
• Dim C Max.: 0.165
• Dim D Max.: 0.293
• CL to Edge Distance: 0.21
• .060in CRS Max Tightening Torque: 26 in-lbs
• .060in CRS Installation Force: 3000 lbs
• .060in CRS Push Out: 350 lbs
• .060in CRS Torque Out: 70 in-lbs
• .060in 5052 H34 Aluminum Installation Force: 2000 lbs
• .060in 5052 H34 Aluminum Push Out: 300 lbs
• .060in 5052 H34 Aluminum Torque Out: 70 in-lbs
