Specifications :

• MFG Part Number : LPH-2-M3-30
• Product Group: LPH-2
• Material: Steel; Heat Treated
• Finish: Bright Nickel
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 5.5 +0.08 -0.00
• Sheet Thickness: 1.5

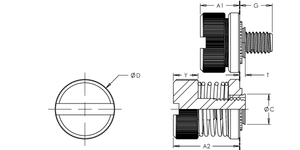

• Dim A1 Max.: 8.26
• Dim A2: 15.11
• Dim C Max.: 5.48
• Dim D: 10.31 ±0.25
• Dim G: 7.62 ±0.40
• Dim T Max.: 1.48
• Dim Y: 5.13 ±0.13
• CL to Edge Distance: 6.6
• CRS B 60 Max Installation Force: 22.2 kN
• CRS B 60 Max Push Out: 1334 N
• 5052 H34 Aluminum Installation Force: 9.8 kN
• 5052 H34 Aluminum Push Out: 823 N
