Specifications :

• MFG Part Number : LPH-0-1032-30
• Product Group: LPH-0
• Material: Steel; Heat Treated
• Finish: Bright Nickel
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.312 +0.003 -0.000
• Sheet Thickness: 0.03

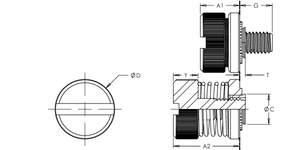

• Dim A1 Max.: 0.335
• Dim A2: 0.605
• Dim C Max.: 0.311
• Dim D: 0.530 ±0.010
• Dim G: 0.300 ±0.015
• Dim T Max.: 0.03
• Dim Y: 0.220 ±0.005
• CL to Edge Distance: 0.33
• CRS B 60 Max Installation Force: 8000 lbs.
• CRS B 60 Max Push Out: 95 lbs.
• 5052 H34 Aluminum Installation Force: 3500 lbs.
• 5052 H34 Aluminum Push Out: 72 lbs.
