Specifications :

• MFG Part Number : PSS-832-0
• Product Group: PSS
• Material: Aluminum Knob; Steel Base; Stainless Screw
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Smooth Head
• Hole Diameter: 0.312 +0.003 -0.000
• Sheet Thickness: 0.036

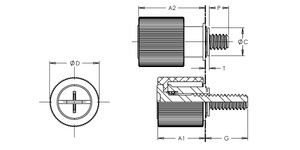

• Dim A1 Nom.: 0.45
• Dim A2: 0.64
• Dim C Max.: 0.311
• Dim D: 0.514 ±0.010
• Dim G: 0.230 ±0.025
• Dim P: 0.000 ±0.025
• Dim T Max.: 0.036
• CL to Edge Distance: 0.33
• CRS Installation Force: 4500 lbs
• CRS Push Out: 160 lbs
• 5052 H34 Aluminum Installation Force: 3000 lbs
• 5052 H34 Aluminum Push Out: 100 lbs
