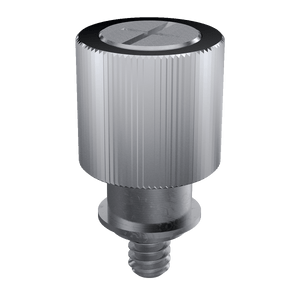

Self-Clinching Collar Base Panel Fastener, Knurled Head, Aluminum Knob, Steel Base, Stainless Screw, 8-32 x 0, 100 Pack

Self-Clinching Collar Base Panel Fastener, Knurled Head, Aluminum Knob, Steel Base, Stainless Screw, 8-32 x 0, 100 Pack

Self-Clinching Collar Base Panel Fastener, Knurled Head, Aluminum Knob, Steel Base, Stainless Screw, 8-32 x 0, 100 Pack

Self-Clinching Collar Base Panel Fastener, Knurled Head, Aluminum Knob, Steel Base, Stainless Screw, 8-32 x 0, 100 Pack

Self-Clinching Collar Base Panel Fastener, Knurled Head, Aluminum Knob, Steel Base, Stainless Screw, 8-32 x 0, 100 Pack

Specifications :

MFG Part Number : PSK-832-0
Product Group: PSK
Material: Aluminum Knob; Steel Base; Stainless Screw
Thread Type: Imperial
Thread Size: 8-32 UNC
Thread Code: 832
Knurled Head
Hole Diameter: 0.312 +0.003 -0.000
Sheet Thickness: 0.036

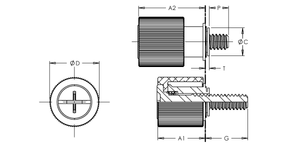

Dim A1 Nom.: 0.45
Dim A2: 0.64
Dim C Max.: 0.311
Dim D: 0.514 ±0.010
Dim G: 0.230 ±0.025
Dim P: 0.000 ±0.025
Dim T Max.: 0.036
CL to Edge Distance: 0.33
CRS Installation Force: 4500 lbs
CRS Push Out: 160 lbs
5052 H34 Aluminum Installation Force: 3000 lbs
5052 H34 Aluminum Push Out: 100 lbs
