Specifications :

• MFG Part Number : CRTSM4-1
• Product Group: CRTS
• Material: Stainless Steel; 300 Series
• Finish: Black Dry Film Lubricant
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Hole Diameter: 6.76 +0.08 -0.00
• Sheet Thickness: 1

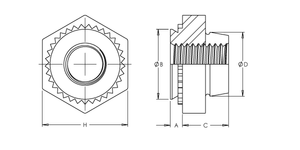

• Dim A Max.: 0.97
• Dim B Max.: 6.73
• Dim C: 4.45 ±0.25
• Dim D Max.: 6.2
• Dim H Nom.: 8.73
• CL to Edge Distance: 5.2
• CRS Installation Force: 17.8 kN
• CRS Push Out: 845 N
• CRS Torque Out: 5.6 N-m
