Specifications :

• MFG Part Number : CRTSM3-1
• Product Group: CRTS
• Material: Stainless Steel; 300 Series
• Finish: Black Dry Film Lubricant
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.75 +0.08 -0.00
• Sheet Thickness: 1

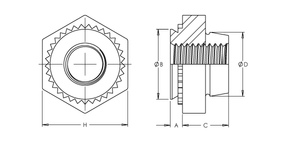

• Dim A Max.: 0.97
• Dim B Max.: 4.73
• Dim C: 3.43 ±0.25
• Dim D Max.: 4.85
• Dim H Nom.: 6.35
• CL to Edge Distance: 4.0
• CRS Installation Force: 13.3 kN
• CRS Push Out: 667 N
• CRS Torque Out: 3.4 N-m
• 5052 H34 Aluminum Installation Force: 7.1 kN
• 5052 H34 Aluminum Push Out: 578 N
• 5052 H34 Aluminum Torque Out: 2.8 N-m
