Specifications :

• MFG Part Number : CRTA1032-1
• Product Group: CRTA
• Material: Aluminum; 7076-T6
• Finish: None
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.312 +0.003 -0.00
• Sheet Thickness: 0.04

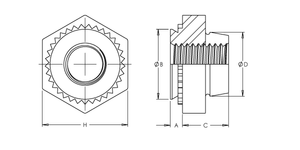

• Dim A Max.: 0.038
• Dim B Max.: 0.311
• Dim C: 0.205 ±0.010
• Dim D Max.: 0.285
• Dim H Nom.: 0.375
• CL to Edge Distance: 0.218
• CRS Installation Force: 4000 lbs
• CRS Push Out: 250 lbs
• CRS Torque Out: 100 in-lbs
• 5052 H34 Aluminum Installation Force: 3200 lbs.
• 5052 H34 Aluminum Push Out: 150 lbs.
• 5052 H34 Aluminum Torque Out: 90 in-lbs.
