Specifications :

• MFG Part Number : CRT440-1ML
• Product Group: CRT
• Material: Steel; Heat Treated
• Finish: Black Dry Film Lubricant
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.187 +0.003 -0.00
• Sheet Thickness: 0.04

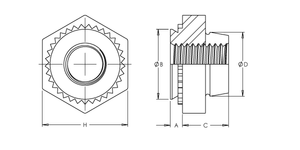

• Dim A Max.: 0.038
• Dim B Max.: 0.186
• Dim C: 0.135 ±0.010
• Dim D Max.: 0.185
• Dim H Nom.: 0.25
• CL to Edge Distance: 0.156
• CRS Installation Force: 3000 lbs
• CRS Push Out: 150 lbs
• CRS Torque Out: 30 in-lbs
• 5052 H34 Aluminum Installation Force: 1600 lbs.
• 5052 H34 Aluminum Push Out: 130 lbs.
• 5052 H34 Aluminum Torque Out: 25 in-lbs.
