Specifications :

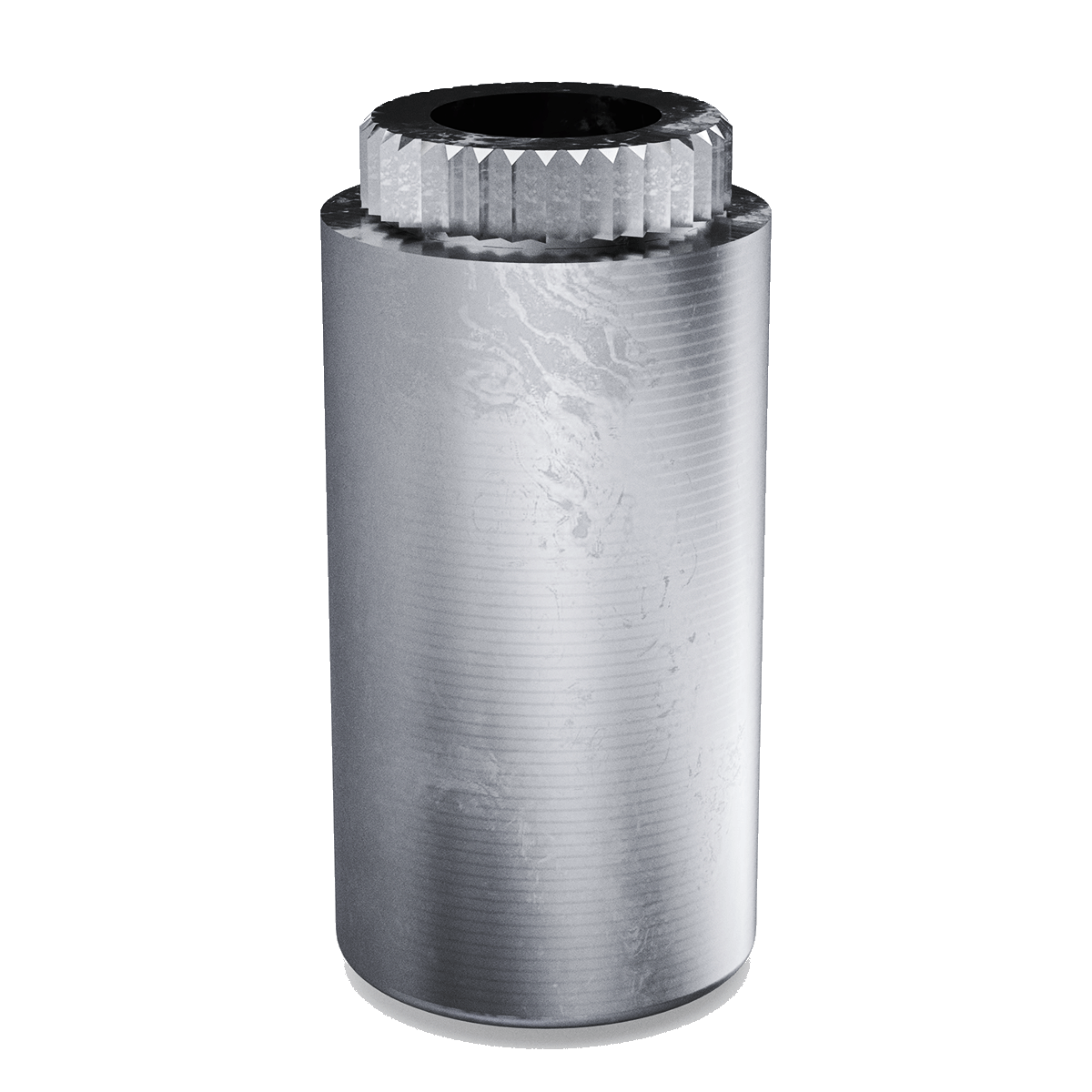

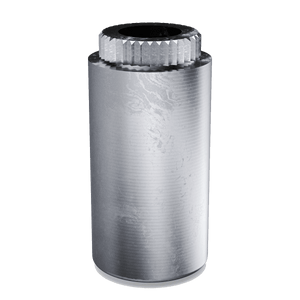

• MFG Part Number : CKFEM3-8
• Product Group: CKFE
• Material: Steel
• Finish: Electro Tin
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.22 +0.08 -0.00
• Sheet Thickness: 1.53

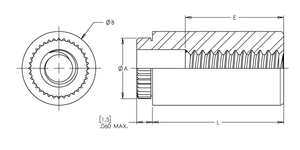

• Dim A: 4.68 ±0.08
• Dim B: 5.56 ±0.13
• Dim E: FULL
• Dim L: 8.00 ±0.13
• CL to Edge Distance: 4.4
• .060in Fiberglass Installation Force: 2.2 kN
• .060in Fiberglass Push Out: 290 N
• .060in Fiberglass Torque Out: 1.7 N-m
