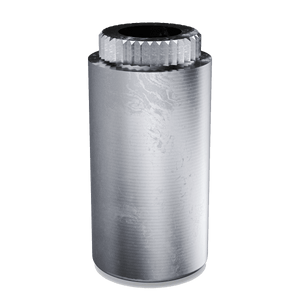

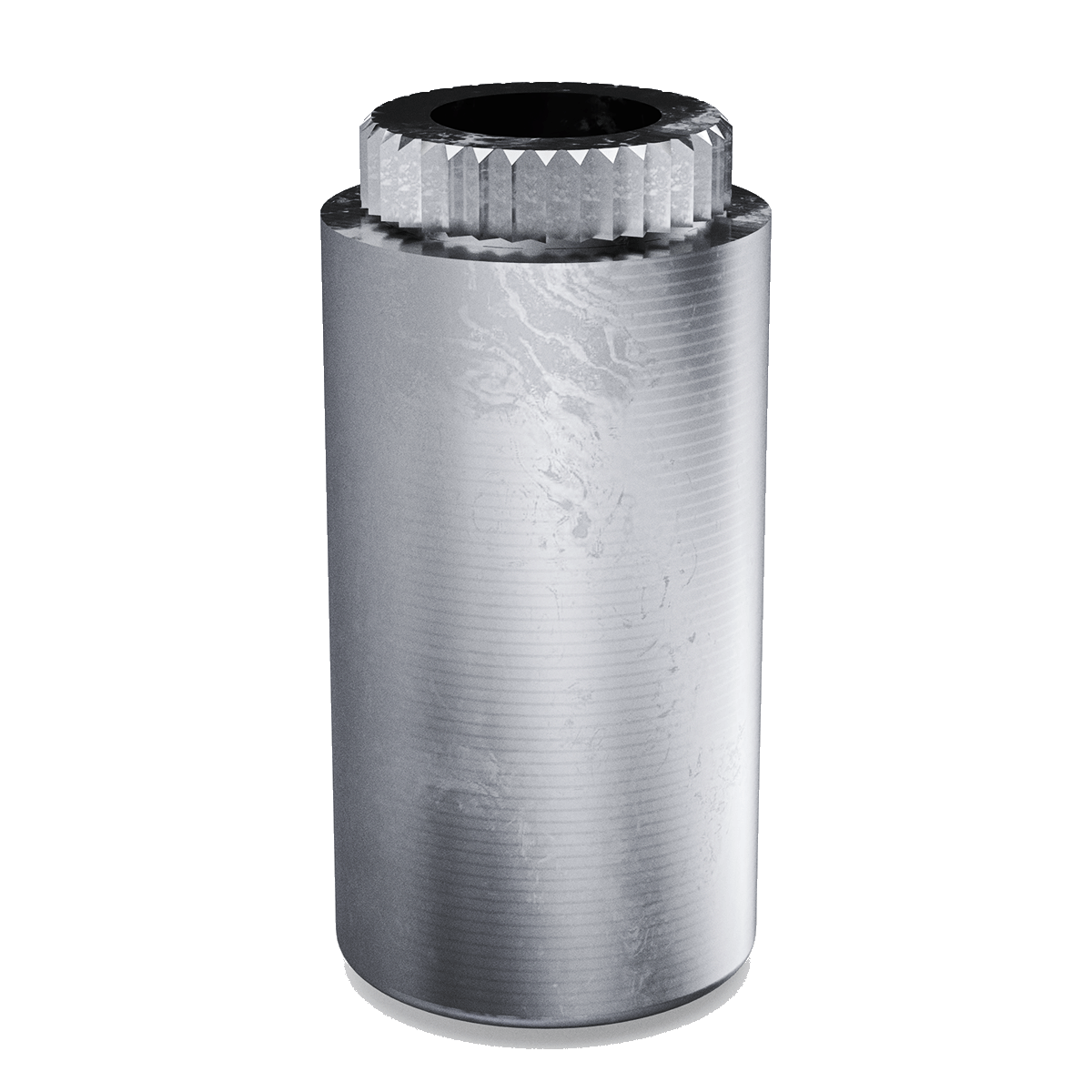

Broaching Standoff, Steel, Electro Tin, Metric, 3.6 x 6, 100 Pack

Specifications :

  • MFG Part Number : CKFE3.6-6
  • Product Group: CKFE
  • Material: Steel
  • Finish: Electro Tin
  • Thread Type: Metric
  • Thread Size: Unthreaded
  • Hole Diameter: 5.41 +0.08 -0.00
  • Thru Hole Dia.: 3.6 +0.10 -0.08
  • Sheet Thickness: 1.53

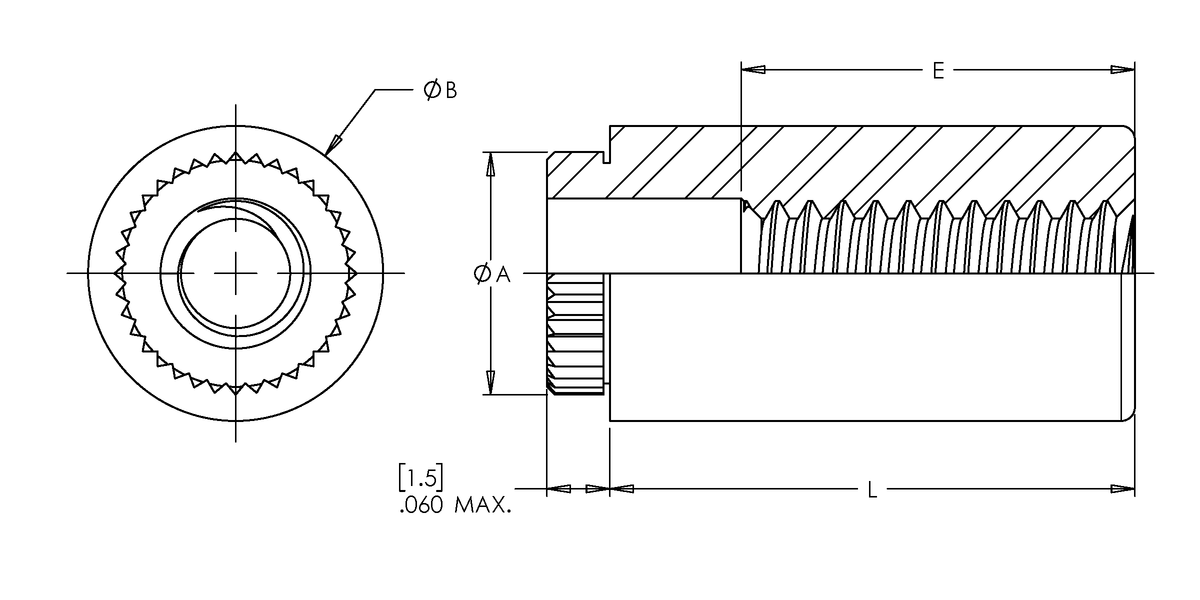

  • Dim A: 5.87 ±0.08
  • Dim B: 7.14 ±0.13
  • Dim L: 6.00 ±0.13
  • CL to Edge Distance: 5.5
