Specifications :

• MFG Part Number : CKFB3440-4
• Product Group: CKFB3
• Material: Brass; CDA-360
• Finish: Electro Tin
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.166 +0.003 -0.000
• Sheet Thickness: 0.05

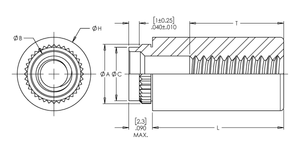

• Dim A: 0.179 ±0.003
• Dim B: 0.122 ±0.003
• Dim C Max.: 0.165
• Dim H: 0.219 ±0.005
• Dim L: 0.125 ±0.005
• Dim T: FULL
• CL to Edge Distance: 0.17
• Installation Sheet Thickness: 1.14mm SS
• .060in Fiberglass Installation Force: 1000 lbs.
• .060in Fiberglass Push Out: 140 lbs.
• .060in Fiberglass Torque Out: 18 in-lbs.
