Specifications :

• MFG Part Number : HCHSM6-30
• Product Group: HCHS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M6x1.0
• Thread Code: M6
• Hole Diameter: 6.00 +0.13 -0.00
• Sheet Thickness: 1.5
• 1.600mm CRS Sheet Hardness: 45 HRB

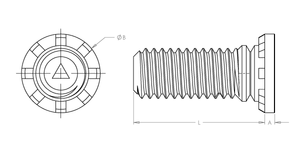

• Dim A Max.: 1.27
• Dim B: 9.40 ±0.25
• Dim L: 30.0 ±0.4
• CL to Edge Distance: 11.5
• 1.600mm CRS Max Tightening Torque: 10 N-m
• Max. Hole in attached parts: 7.5
• 1.600mm CRS Installation Force: 24.6 kN
• 1.600mm CRS Push Out: 1750 N
• 1.600mm CRS Torque Out: 11 N-m
• 1.620mm Aluminum Sheet Hardness: 35 HRB
• 1.620mm Aluminum Installation Force: 15.4 kN
• 1.620mm Aluminum Push Out: 1270 N
• 1.620mm Aluminum Torque Out: 11 N-m
• 1.620mm Aluminum Max Tightening Torque: 10 N-m
