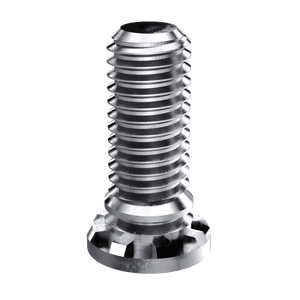

Specifications :

• MFG Part Number : HCHSM5-35
• Product Group: HCHS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 5.00 +0.13
• Sheet Thickness: 1.3
• 1.500mm CRS Sheet Hardness: 54 HRB

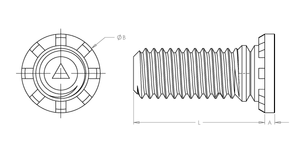

• Dim A Max.: 1.14
• Dim B: 7.80 ±0.25
• Dim L: 35.0 ±0.4
• CL to Edge Distance: 10.7
• 1.500mm CRS Max Tightening Torque: 4.4 N-m
• Max. Hole in attached parts: 6.4
• 1.500mm CRS Installation Force: 21.7 kN
• 1.500mm CRS Push Out: 1500 N
• 1.500mm CRS Torque Out: 6.4 N-m
• 1.620mm Aluminum Sheet Hardness: 35 HRB
• 1.620mm Aluminum Installation Force: 12.4 kN
• 1.620mm Aluminum Push Out: 800 N
• 1.620mm Aluminum Torque Out: 5.4 N-m
• 1.620mm Aluminum Max Tightening Torque: 4.4 N-m
