Specifications :

• MFG Part Number : HCHS616-20
• Product Group: HCHS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 3/8-16 UNC
• Thread Code: 616
• Hole Diameter: 0.375 +0.005 -0.000
• Sheet Thickness: 0.09
• .099in CRS Sheet Hardness HRB: 44 HRB

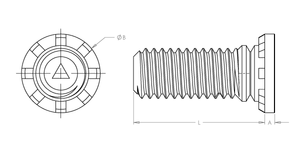

• Dim A Max.: 0.085
• Dim B: 0.580 ±0.010
• Dim L: 1.250 ±0.015
• CL to Edge Distance: 0.53
• .099in CRS Max Tightening Torque: 27 ft-lbs
• Max. Hole in attached parts: 0.437
• .099in CRS Installation Force: 13000 lbs
• .099in CRS Push Out: 780 lbs
• .099in CRS Torque Out: 25 ft-lbs
• .123in Aluminum Sheet Hardness HRB: 44 HRB
• .123in Aluminum Installation Force: 10000 lbs
• .123in Aluminum Push Out: 560 lbs
• .123in Aluminum Torque Out: 25 ft-lbs
• .123in Aluminum Max Tightening Torque: 27 ft-lbs
