Specifications :

• MFG Part Number : HCHM6-25
• Product Group: HCH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M6x1.0
• Thread Code: M6
• Hole Diameter: 6.00 +0.13 -0.00
• Sheet Thickness: 1.5
• 1.500mm CRS Sheet Hardness: 59 HRB

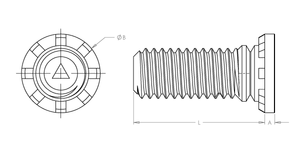

• Dim A Max.: 1.27
• Dim B: 9.40 ±0.25
• Dim L: 25.0 ±0.4
• CL to Edge Distance: 11.5
• 1.500mm CRS Max Tightening Torque: 10 N-m
• Max. Hole in attached parts: 7.5
• 1.500mm CRS Installation Force: 33 kN
• 1.500mm CRS Push Out: 1750 N
• 1.500mm CRS Torque Out: 14 N-m
• 1.500mm Aluminum Sheet Hardness: 43 HRB
• 1.500mm Aluminum Installation Force: 29 kN
• 1.500mm Aluminum Push Out: 1270 N
• 1.500mm Aluminum Torque Out: 14 N-m
• 1.500mm Aluminum Max Tightening Torque: 10 N-m
