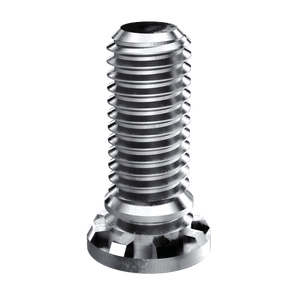

Specifications :

• MFG Part Number : HCHM5-25
• Product Group: HCH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 5.00 +0.13 -0.00
• Sheet Thickness: 1.3
• 1.500mm CRS Sheet Hardness: 65 HRB

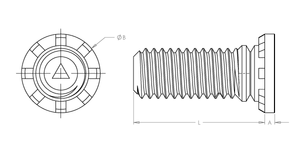

• Dim A Max.: 1.14
• Dim B: 7.80 ±0.25
• Dim L: 25.0 ±0.4
• CL to Edge Distance: 10.7
• 1.500mm CRS Max Tightening Torque: 4.4 N-m
• Max. Hole in attached parts: 6.4
• 1.500mm CRS Installation Force: 26 kN
• 1.500mm CRS Push Out: 1500 N
• 1.500mm CRS Torque Out: 7.6 N-m
• 1.500mm Aluminum Sheet Hardness: 15 HRB
• 1.500mm Aluminum Installation Force: 13 kN
• 1.500mm Aluminum Push Out: 800 N
• 1.500mm Aluminum Torque Out: 5.4 N-m
• 1.500mm Aluminum Max Tightening Torque: 4.4 N-m
