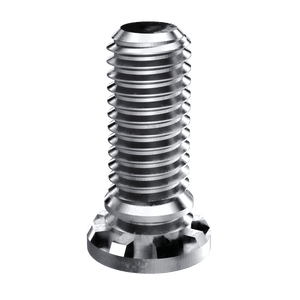

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, M8x1.25 x 40, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, M8x1.25 x 40, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, M8x1.25 x 40, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, M8x1.25 x 40, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, M8x1.25 x 40, 50 Pack

Specifications :

MFG Part Number : HCHBM8-40
Product Group: HCHB
Material: Phosphor Bronze; CDA-510
Finish: None
Thread Type: Metric
Thread Size: M8x1.25
Thread Code: M8
Hole Diameter: 8.00 +0.13 -0.00
Sheet Thickness: 2
3.200mm Copper CDA-110 Sheet Hardness: 32 HRB

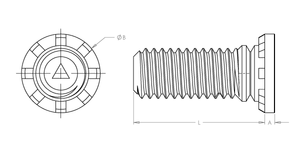

Dim A Max.: 1.78
Dim B: 12.50 ±0.25
Dim L: 40.0 ±0.4
CL to Edge Distance: 12.7
3.200mm Copper CDA-110 Max Tightening Torque: 14.3 N-m
Max. Hole in attached parts: 9.5
3.200mm Copper CDA-110 Installation Force: 33 kN
3.200mm Copper CDA-110 Push Out: 2250 N
3.200mm Copper CDA-110 Torque Out: 15.3 N-m
