Specifications :

• MFG Part Number : HCHBM5-20
• Product Group: HCHB
• Material: Phosphor Bronze; CDA-510
• Finish: None
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 5.00 +0.13 -0.00
• Sheet Thickness: 1.3
• 1.500mm Copper CDA-110 Sheet Hardness: 28 HRB

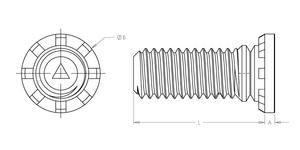

• Dim A Max.: 1.14
• Dim B: 7.80 ±0.25
• Dim L: 20.0 ±0.4
• CL to Edge Distance: 10.7
• 1.500mm Copper CDA-110 Max Tightening Torque: 3.47 N-m
• Max. Hole in attached parts: 6.4
• 1.500mm Copper CDA-110 Installation Force: 15.6 kN
• 1.500mm Copper CDA-110 Push Out: 1115 N
• 1.500mm Copper CDA-110 Torque Out: 3.4 N-m
