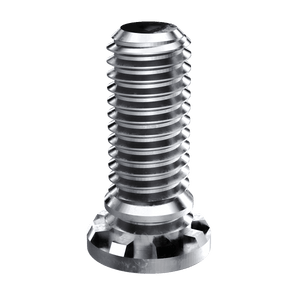

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 3/8-16 x 1.000, 50 Pack
Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 3/8-16 x 1.000, 50 Pack
Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 3/8-16 x 1.000, 50 Pack
Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 3/8-16 x 1.000, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 3/8-16 x 1.000, 50 Pack

Specifications :

  • MFG Part Number : HCHB616-16
  • Product Group: HCHB
  • Material: Phosphor Bronze; CDA-510
  • Finish: None
  • Thread Type: Imperial
  • Thread Size: 3/8-16 UNC
  • Thread Code: 616
  • Hole Diameter: 0.375 +0.005 -0.000
  • Sheet Thickness: 0.09
  • .126in Copper CDA-110 Sheet Hardness HRB: 32 HRB

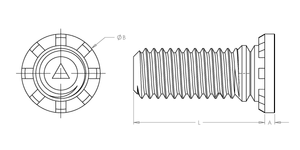

  • Dim A Max.: 0.085
  • Dim B: 0.580 ±0.010
  • Dim L: 1.000 ±0.015
  • CL to Edge Distance: 0.53
  • .126in Copper CDA-110 Max Tightening Torque: 21 ft-lbs
  • Max. Hole in attached parts: 0.437
  • .126in Copper CDA-110 Installation Force: 12000 lbs
  • .126in Copper CDA-110 Push Out: 560 lbs
  • .126in Copper CDA-110 Torque Out: 18 ft-lbs
