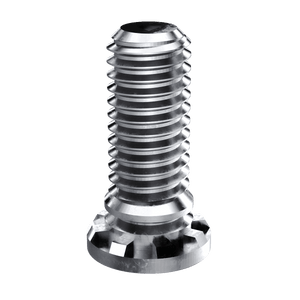

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 5/16-18 x 1.000, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 5/16-18 x 1.000, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 5/16-18 x 1.000, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 5/16-18 x 1.000, 50 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 5/16-18 x 1.000, 50 Pack

Specifications :

MFG Part Number : HCHB518-16
Product Group: HCHB
Material: Phosphor Bronze; CDA-510
Finish: None
Thread Type: Imperial
Thread Size: 5/16-18 UNC
Thread Code: 518
Hole Diameter: 0.312 +0.005 -0.000
Sheet Thickness: 0.075
.126in Copper CDA-110 Sheet Hardness HRB: 32 HRB

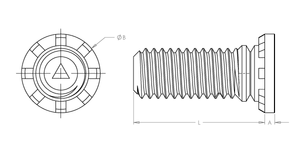

Dim A Max.: 0.07
Dim B: 0.480 ±0.010
Dim L: 1.000 ±0.015
CL to Edge Distance: 0.5
.126in Copper CDA-110 Max Tightening Torque: 10.55 ft-lbs
Max. Hole in attached parts: 0.374
.126in Copper CDA-110 Installation Force: 7500 lbs
.126in Copper CDA-110 Push Out: 500 lbs
.126in Copper CDA-110 Torque Out: 11 ft-lbs
