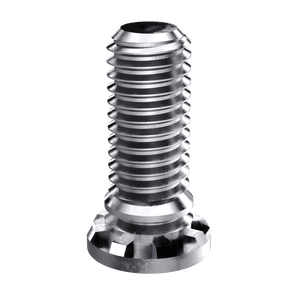

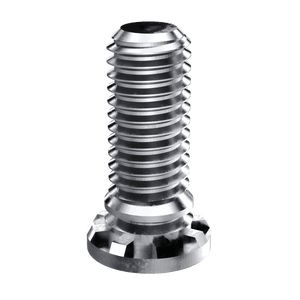

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 10-32 x 1.750, 100 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 10-32 x 1.750, 100 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 10-32 x 1.750, 100 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 10-32 x 1.750, 100 Pack

Self-Clinching Stud, High Torque, Phosphor Bronze CDA-510, 10-32 x 1.750, 100 Pack

Specifications :

MFG Part Number : HCHB1032-28
Product Group: HCHB
Material: Phosphor Bronze; CDA-510
Finish: None
Thread Type: Imperial
Thread Size: 10-32 UNF
Thread Code: 1032
Hole Diameter: 0.190 +0.005 -0.000
Sheet Thickness: 0.05
.061in Copper CDA-110 Sheet Hardness HRB: 28 HRB

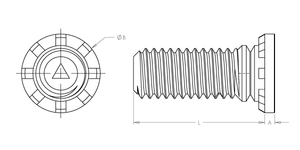

Dim A Max.: 0.04
Dim B: 0.300 ±0.010
Dim L: 1.750 ±0.015
CL to Edge Distance: 0.415
.061in Copper CDA-110 Max Tightening Torque: 2.56 ft-lbs
Max. Hole in attached parts: 0.252
.061in Copper CDA-110 Installation Force: 3400 lbs
.061in Copper CDA-110 Push Out: 150 lbs
.061in Copper CDA-110 Torque Out: 2.9 ft-lbs
