Specifications :

• MFG Part Number : HCH518-24
• Product Group: HCH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 5/16-18 UNC
• Thread Code: 518
• Hole Diameter: 0.312 +0.005 -0.000
• Sheet Thickness: 0.075
• .090in CRS Sheet Hardness HRB: 58 HRB

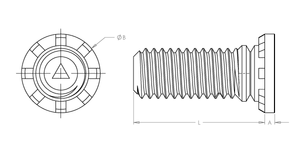

• Dim A Max.: 0.07
• Dim B: 0.480 ±0.010
• Dim L: 1.500 ±0.015
• CL to Edge Distance: 0.5
• .090in CRS Max Tightening Torque: 16 ft-lbs
• Max. Hole in attached parts: 0.374
• .090in CRS Installation Force: 10000 lbs
• .090in CRS Push Out: 590 lbs
• .090in CRS Torque Out: 22 ft-lbs
• .091in Aluminum Sheet Hardness HRB: 39 HRB
• .091in Aluminum Installation Force: 8000 lbs
• .091in Aluminum Push Out: 380 lbs
• .091in Aluminum Torque Out: 22 ft-lbs
• .091in Aluminum Max Tightening Torque: 16 ft-lbs
