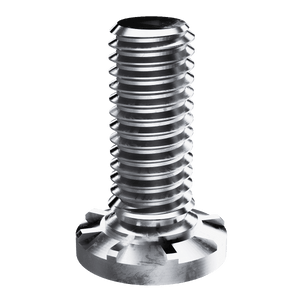

Specifications :

• MFG Part Number : HCWM5-30
• Product Group: HCW
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 5.00 +0.13 -0.00
• Sheet Thickness: 1
• CRS Sheet Hardness: 67 HRB

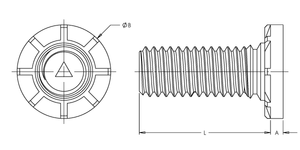

• Dim A Max.: 1.35
• Dim B: 9.60 ±0.25
• Dim L: 30.0 ±0.4
• CL to Edge Distance: 10.0
• Max. Hole in attached parts: 7.3
• 1.000mm CRS Installation Force: 51.1 kN
• 1.000mm CRS Push Out: 1350 lbs
• 1.000mm CRS Torque Out: 8.1 N-m
• 5052 H34 Aluminum Sheet Hardness: 27 HRB
• 1.000mm 5052-H34 Aluminum Intallation Force: 37.7 kN
• 1.000mm 5052-H34 Aluminum Push Out: 690 N
• 1.000mm 5052-H34 Aluminum Torque Out: 8.1 N-m
