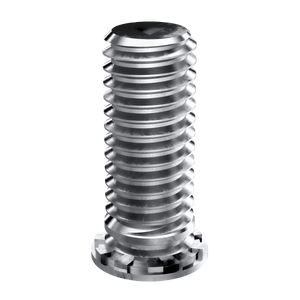

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.375, 100 Pack

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.375, 100 Pack

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.375, 100 Pack

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.375, 100 Pack

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 4-40 x 0.375, 100 Pack

$99,999.00 USD

Specifications :

MFG Part Number : CHS440-6
Product Group: CHS
Material: Stainless Steel; 300 Series
Finish: Passivated
Thread Type: Imperial
Thread Size: 4-40 UNC
Thread Code: 440
Hole Diameter: 0.111 +0.003 -0.00
Sheet Thickness: 0.04

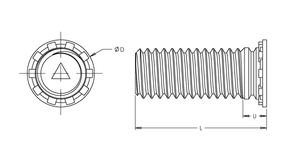

Dim D: 0.176 ±0.015
Dim L: 0.375 ±0.015
Dim U Max.: 0.085
CL to Edge Distance: 0.219
Max Nut Tightening Torque: 5 in-lbs
.045in CRS Max Rec Nut Tight Torque: 4700 lbs
.060in CRS Installation Force: 4300 lbs
.060in CRS Push Out: 275 lbs
.060in CRS Torque Out: 8 in-lbs
.064in Aluminum Installation Force: 3200 lbs
.064in Aluminum Push Out: 170 lbs
.064in Aluminum Torque Out: 8 in-lbs
