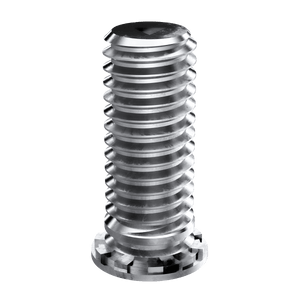

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 1/4-20 x 0.875, 50 Pack
Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 1/4-20 x 0.875, 50 Pack
Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 1/4-20 x 0.875, 50 Pack
Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 1/4-20 x 0.875, 50 Pack

Self-Clinching Stud, Flush Head, 300 Series Stainless Steel, Passivated, 1/4-20 x 0.875, 50 Pack

Specifications :

  • MFG Part Number : CHS420-14
  • Product Group: CHS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Imperial
  • Thread Size: 1/4-20 UNC
  • Thread Code: 420
  • Hole Diameter: 0.249 +0.003 -0.00
  • Sheet Thickness: 0.062

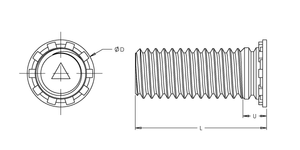

  • Dim D: 0.337 ±0.015
  • Dim L: 0.875 ±0.015
  • Dim U Max.: 0.135
  • CL to Edge Distance: 0.312
  • Max Nut Tightening Torque: 58 in-lbs
  • .088in CRS Installation Force: 10000 lbs
  • .088in CRS Push Out: 575 lbs
  • .088in CRS Torque Out: 100 in-lbs
  • .093in Aluminum Installation Force: 6500 lbs
  • .093in Aluminum Push Out: 310 lbs
  • .093in Aluminum Torque Out: 65 in-lbs
